How Does Silo Fumigation Work? Circulation Systems and Phosphine Application
Fumigation has a paradox at its center: the treatment is a gas, and the silo is full of air. Whether a fumigation works or fails is decided less by the chemical than by the enclosure around it — how well the silo holds a concentration, and how evenly that concentration reaches every corner of the grain mass. This article explains how phosphine fumigation actually works in steel grain silos: the airtightness that precedes it, the dosage rules that govern it, and the circulation systems that make large-scale treatment reliable.
Why Fumigation Fails in Leaky Silos
In a silo that leaks, fumigation does worse than fail — it trains the pest population. The gas concentration never reaches lethal levels everywhere at once: the adults in the well-exposed zones die, but the eggs, larvae and pupae deep in poorly penetrated regions survive. The result is a reinfested silo stocked with the descendants of the most gas-tolerant individuals — one fumigation is enough to start selecting for resistance.
There is a subtler trap in judging results. Adults are only around 15% of the insects actually present in an infested store — the visible stage. A silo that looks clean a week after fumigation can still carry a full generation of immature insects; if pests reappear within one to two months, the treatment failed, and the failure was in distribution or hold time, not in the chemical.

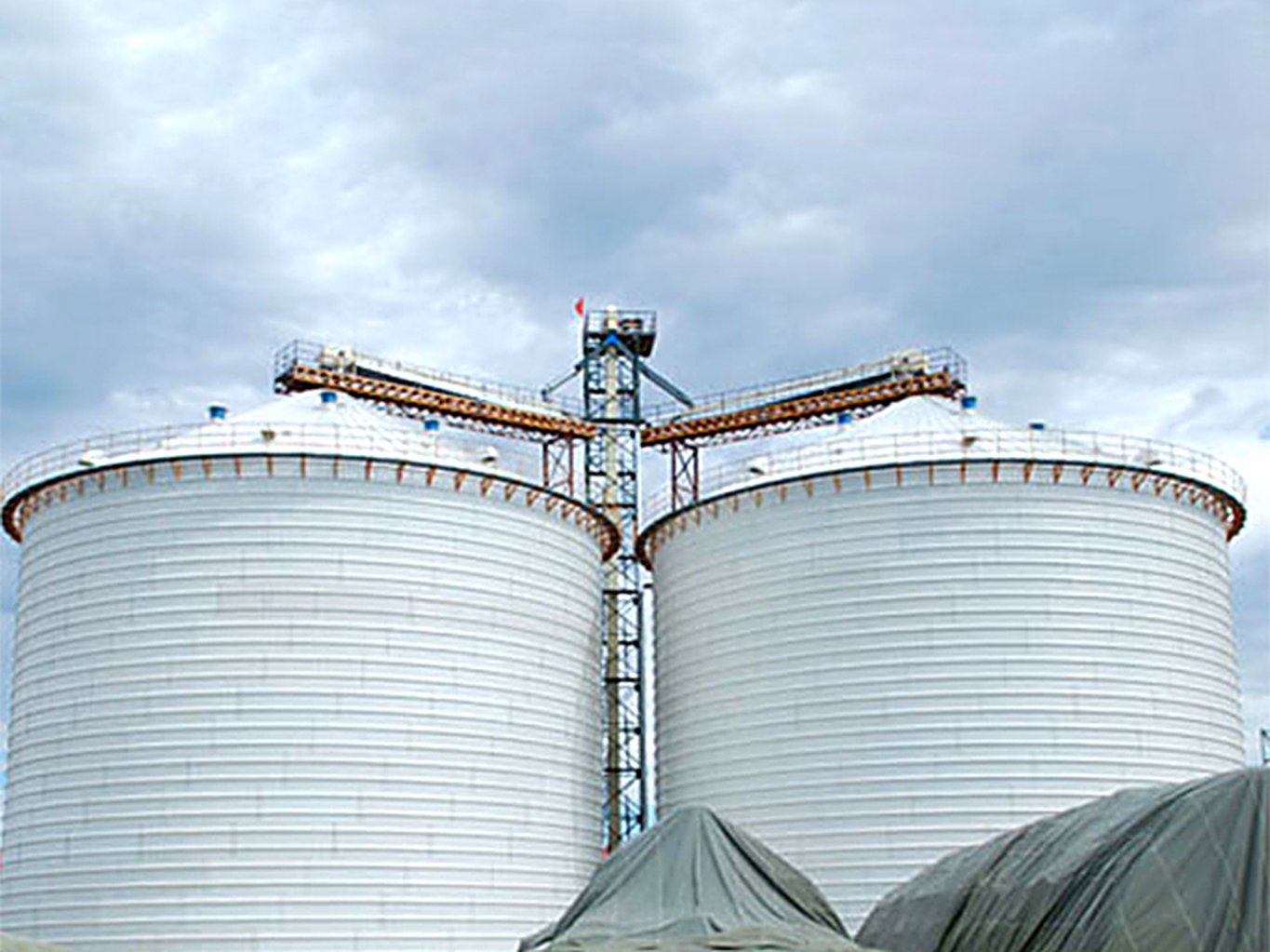

Airtightness: The Prerequisite

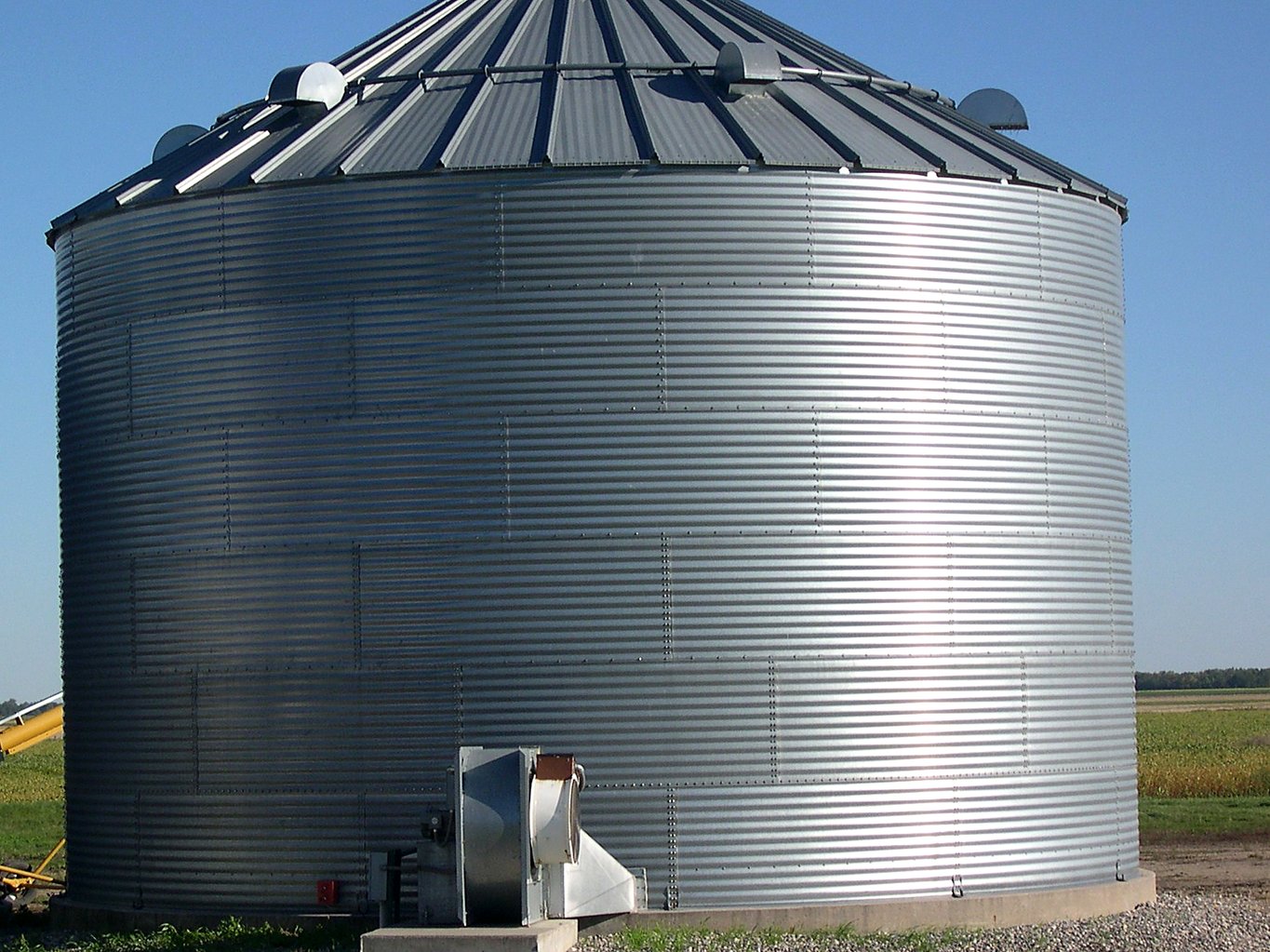

Everything starts with an enclosure that can hold gas. The operational benchmark most Australian practice is built on is the half-life pressure test: pressurize the sealed silo with air and time how long the pressure takes to fall from 25 mmHg to 12.5 mmHg — a sound seal gives more than 3 minutes. The Australian AS2628 standard sets the bar for new sealable silos at a half-life above 5 minutes, with existing silos acceptable above 3 minutes.
The test has its own craft:
1. Test in still air: early morning or evening — a silo warming in sunshine expands its internal air and produces falsely optimistic results.
2. Test loaded: grain weight presses the floor outlet gates — a common leak path — firmly closed, so the test measures the seal the fumigation will actually depend on.
3. Top up the relief valve oil first: the pressure relief valve's oil seal is part of the enclosure; a dry valve is a open path and ruins the reading.
A sealed silo is not a one-time achievement. Seals age with UV exposure, panel movement and maintenance work — which is why the pressure test belongs in the annual calendar, not just the commissioning checklist.
Phosphine: Properties and Dosage
Phosphine is slightly heavier than air (molecular weight 33.9 g/mol) — but only slightly, and in practice it moves the way the air around it moves. Diurnal temperature cycles drive currents through the grain mass and the headspace, and those air movements, not the molecule's weight, decide where the gas goes. That single fact explains most of what follows: why passive distribution is unreliable at scale, and why circulation systems exist.
The dosage rules are temperature-dependent because insects are:
1. Warm grain: above 25°C, a concentration of at least 300 ppm maintained for 7 days.
2. Cooler grain: between 15 and 25°C, at least 200 ppm maintained for 10 days — cooler insects breathe slower and take longer to succumb.
3. The repeat limit: the same lot of grain should not be fumigated more than 3 times — repeated treatments against survivors is precisely how resistant populations are bred.
Below 15°C, fumigation loses its practicality altogether — insects are barely metabolizing — which is one more reason cooled grain storage and fumigation work as complements rather than substitutes.
Circulation Systems: Even Distribution at Scale
Above roughly 100 tons of grain, passive gas movement can no longer be trusted. The engineering answer is forced recirculation — a fan and ducting arrangement (in Australian practice, the J-system) that actively turns the headspace gas over through the grain mass, carrying phosphine to every part of the store instead of hoping diffusion gets there.
The evidence for why this matters comes from full-scale trials. In a 1,400-ton silo comparison, a passively fumigated store ended up with significantly lower concentrations at the bottom of the grain mass than anywhere else — the region hardest to reach and often the last place spoilage shows. The recirculating silo, running a modest 0.013 L/s per ton for the first 5 days, held the concentration uniform through the entire grain column.
1. Concentration peaks early, then decays: phosphine levels typically crest around day 4–6 of a treatment and decline thereafter — which is why the full exposure period must be monitored, not assumed. A dose that reads strong on day 2 may fall below the lethal threshold before day 7 unless the seal holds.
2. Resistant pests change the arithmetic: strongly resistant strains — the sawtoothed grain beetle's resistant biotypes are the classic case — can only be controlled by extending exposure well beyond the standard label period (20 days and more) or by active circulation keeping the whole mass above threshold simultaneously. Half-measures are how resistance is selected.
Sealing and Aeration Work Together
Airtightness pays back beyond the fumigation itself. In a genuinely sealed silo, aeration cooling and fumigation interlock: the same enclosure that holds a lethal phosphine concentration for a week also lets the store be ventilated and cooled on the operator's schedule — and post-fumigation aeration, which takes around 5 days in leaky stores, compresses to about 1 day when the seal lets the operator control airflow instead of leaking it. Shorter exposure to outside air after treatment also means less opportunity for reinfestation.
Monitoring: Concentration Curves, Not Guesswork
The modern standard is to treat fumigation as a process with instrumented feedback, not an event: wireless sensors report the phosphine concentration curve in real time, at multiple heights, for the full treatment. The curve tells the operator what no single reading can — whether the concentration is holding above threshold everywhere, where it is decaying fastest, and whether the exposure window will actually close at the planned time. Remote-monitored treatments with predictive hold-time calculation are becoming the norm in professional storage, because every failed fumigation costs a grain-quality problem weeks later.
Frequently Asked Questions
How do I know if my silo is airtight enough to fumigate?
Pressure-test it: pressurize to a small overpressure and time the decay from 25 mmHg to 12.5 mmHg. More than 3 minutes is the working benchmark for existing silos; new sealable silos should exceed 5 minutes (AS2628). Test in still air, with the silo loaded, and with the relief valve seal topped up.
How long must the phosphine concentration be held?
At grain temperatures above 25°C, at least 300 ppm for 7 days; between 15 and 25°C, at least 200 ppm for 10 days. The concentration must be verified across the whole grain mass for the full period — and the same lot should not be fumigated more than 3 times.
Why did pests come back after a successful-looking fumigation?
Adults are only about 15% of the population — the eggs and pupae are invisible and partially shielded. Reappearance within one to two months means the treatment failed to hold lethal concentration everywhere: a leak, a cold region below threshold, or a resistant strain. The fix is sealing and circulation, not a stronger dose.
None of this machinery works without an enclosure worth sealing — which is where silo construction enters the picture. Our company designs and manufactures steel grain silos on German silo-making equipment, and has taken part in the drafting of national standards for steel silo construction; airtightness is engineered into the shell, the roof and every joint from the drawing stage. If fumigation-ready grain storage is on your project list, tell us your storage duration and climate, and our engineering team will propose the construction and sealing system that holds gas as well as it holds grain — see our grain silo and bolted steel silo pages for the construction types behind it.
